CATV Telecom 3mtrs FC SC APC 9 / 125um Jumper Low Insertion Loss Patch Cable
商品の詳細:
| Place of Origin: | China |
| ブランド名: | TTI |
| 証明: | CE/ROHS/ISO9001 |
| Model Number: | TEST |
お支払配送条件:
| Minimum Order Quantity: | 1000 |
|---|---|
| Packaging Details: | Wooden Drum |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KM/Drum or Other Package Lengths Customized |
|
詳細情報 |
|||
| Connection header type: | FC、SC、LC、ST | ||
|---|---|---|---|
| ハイライト: | FC SC APC fiber optic patch cable,3mtrs low insertion loss jumper,CATV telecom patch cord |
||
製品の説明
CATV Telecom 3mtrs FC SC APC 9/125um Jumper Low Insertion Loss Patch Cable
Product Attributes
| Attribute | Value |
|---|---|
| Connection header type | FC, SC, LC, ST |
Technical Specifications
| Parameters | Unit | Numerical value |
|---|---|---|
| Connection header type | - | FC,SC,LC,ST |
| Central wavelength | nm | 1550 | 1310 | 1300 | 850 |
| Maximum insertion loss (23℃) | dB | Typical value 0.1 maximum 0.15 |
| Minimum callback loss (23°C) | PC | dB | ≥45 |
| UPC | dB | ≥55 |
| APC | dB | ≥65 |
| Repeatability | dB | ≤0.1 |
| Interchangeability | dB | ≤0.2 |
| Axis alignment Angle tolerance | deg | ±0.3 |
| Plug the number | Next | ≥1000 |
| Operating temperature | ℃ | -20~+70 |
| Storage temperature | ℃ | -40~+85 |

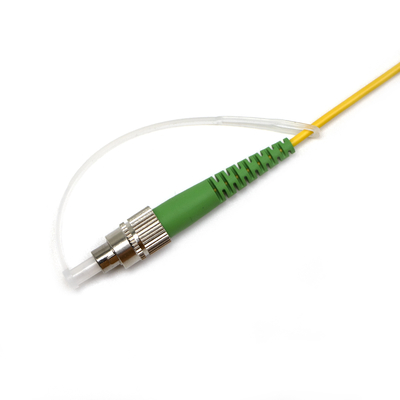

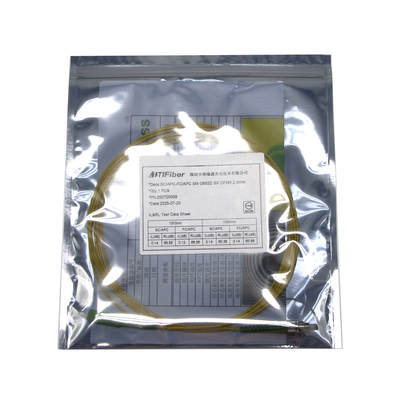

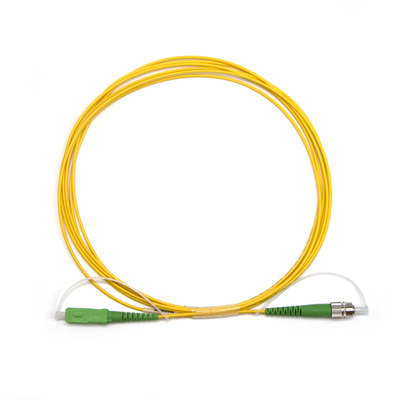

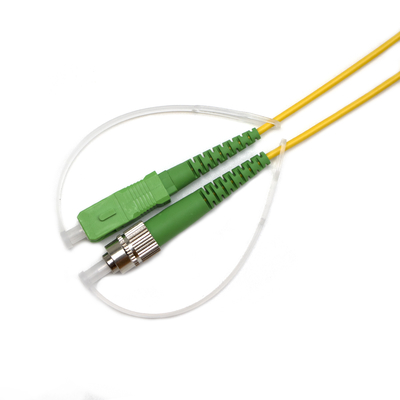

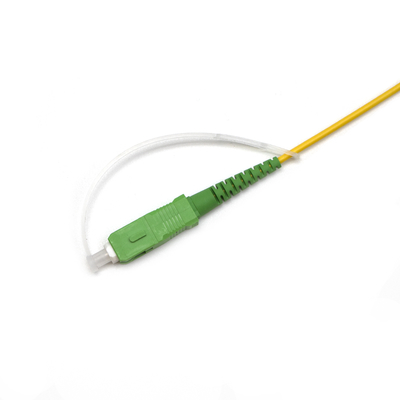

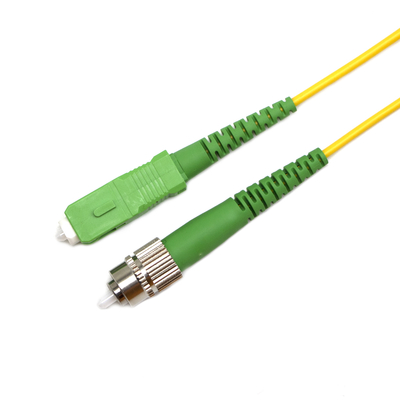

Product Images
